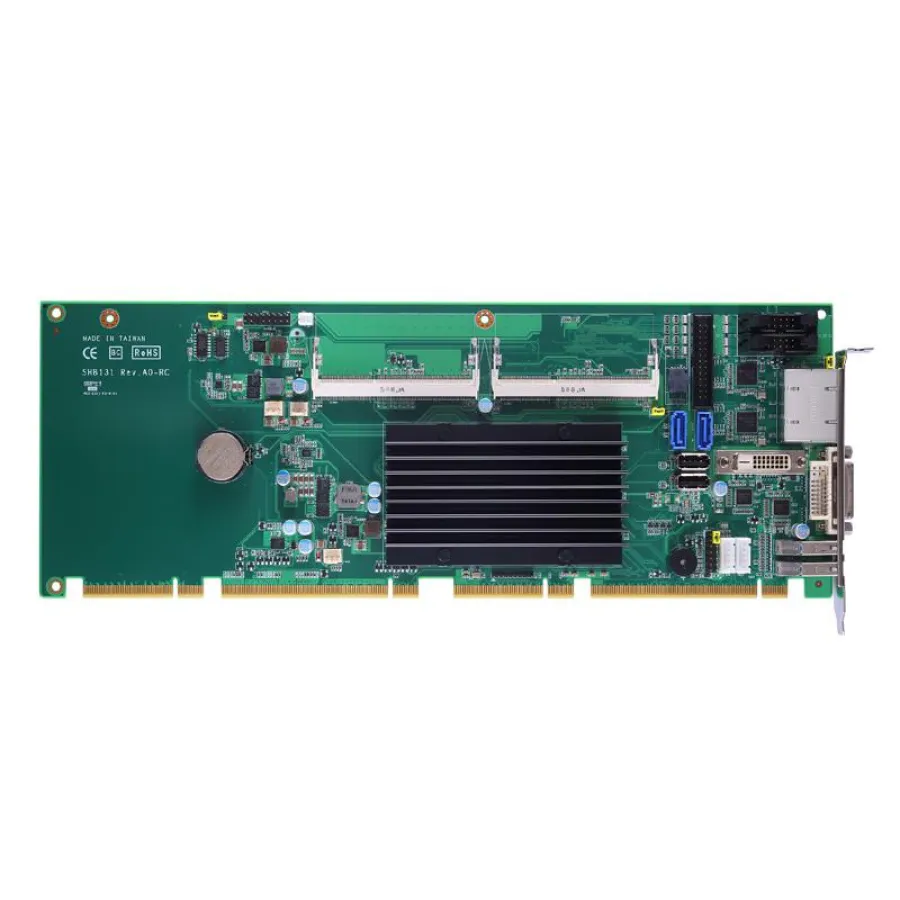

Axiomtek Launches Low-power PICMG 1.3 Full-size Single Board Computer - SHB131

(openPR) Axiomtek, one of the world's leading designers and manufacturers of innovative, high performance and reliable PC-based industrial computer products, is pleased to introduce SHB131, the upcoming new PICMG 1.3 single board computer based on 4th generation Intel® Core™ i7/i5/i3 and Celeron® U-series processors with thermal design power up to 15W. The high-performance PICMG 1.3 full-size CPU card features two 204-pin DDR3L-1600MHz SO-DIMM sockets with up to 16 GB memory capacity and two DVI-D displays. The 338 x 126 mm industrial single board computer delivers PCI Express expansion to the backplane via four PCIe x1 and one PCIe x4. In addition, 4 USB 2.0 interfaces are routed to the backplane for additional expansion options. The Intel® Core™-based SHB131 is designed for rugged, mission-critical applications requiring exceptionally low power and high processing throughput.

Main Features
- 4th generation Intel® Core™ i7/i5/i3 and Celeron® U-series processor, TDP up to 15W
- Two 204-pin DDR3L-1600MHz SO-DIMM, max. up to 16 GB
- Six USB 2.0 ports and two USB 3.0 ports supported
- Two SATA-600 with RAID 0/1
- Dual view displays via two DVI-D

For further product information:
http://www.axiomtek.com/Default.aspx?MenuId=Products&FunctionId=ProductView&ItemId=17371
